CNC Tool Holders: Types, Applications and a Practical Selection Guide

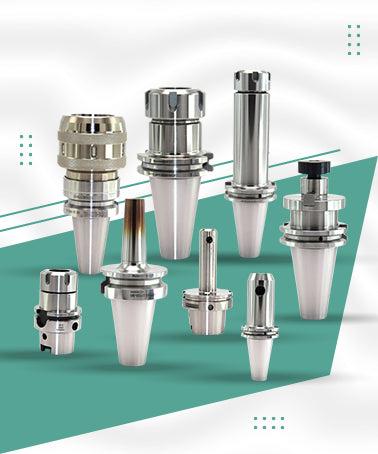

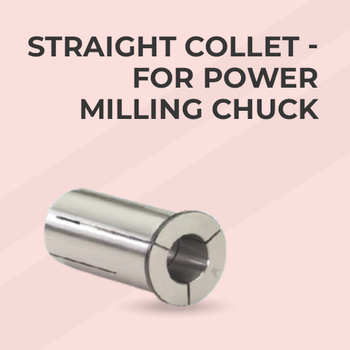

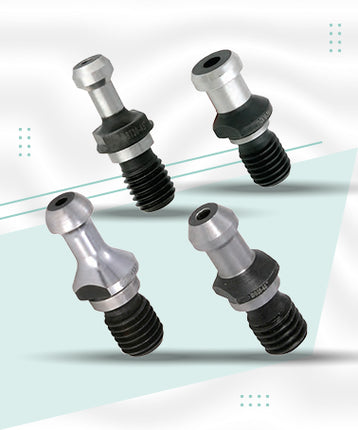

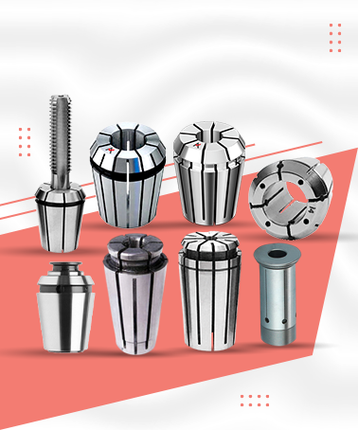

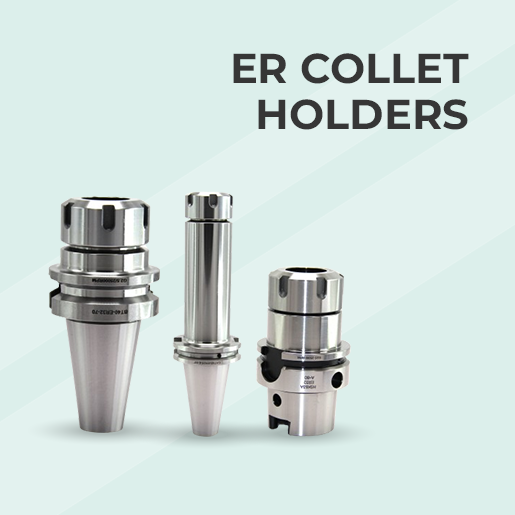

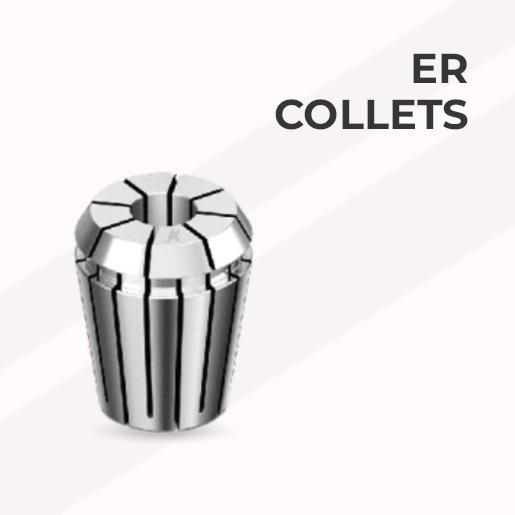

CNC Tool Holders: Types, Applications and a Practical Selection Guide A CNC tool holder is the mechanical connection between a machine spindle and a cutting tool. It must match the spindle interface, grip the selected cutting-tool shank and support the cutting conditions of the operation. That makes tool-holder selection more than a question of diameter. A holder that physically accepts a tool may still be unsuitable because of gauge length, rigidity, clearance, coolant delivery, runout requirement, balance specification, retention system or automatic-tool-changer compatibility. The practical rule is simple: select the complete assembly for the machine, operation and tool—not the holder as an isolated item. This guide explains common CNC tool holder types, where each is used and what information to verify before ordering. What does a CNC tool holder do? The holder connects the rotating spindle to the cutting tool and transfers torque during machining. Depending on the design, it locates and clamps an end mill, drill, reamer, tap, face mill or another rotating tool. In a complete assembly, several components may be involved: machine-spindle interface; holder body; collet, sleeve, arbor or clamping mechanism; nut or clamping screw; retention knob or pull stud where required; cutting tool; coolant-delivery components. Every connection introduces variables. Cleanliness, component condition, correct assembly and compatibility all matter. The holder should therefore be evaluated as part of the entire tool setup. Start with the machine-spindle interface The first selection question is not "Which holder type do I want?" It is "Which exact spindle interface does the machine require?" CAT tool holders CAT holders are widely used in machining centers in the United States. The exact taper size—such as CAT40 or CAT50—and the correct retention knob must match the machine requirements. BT tool holders BT holders use a steep-taper interface and are common in many global machine installations. Although CAT and BT holders may share a nominal taper angle in comparable sizes, their flange, retention and tool-change details differ. Do not treat CAT and BT holders as automatically interchangeable. HSK tool holders HSK is a hollow-taper interface designed for simultaneous contact at the taper and flange when used with a compatible spindle. HSK is available in different forms and sizes. The exact HSK designation must match the machine. Dual-contact interfaces Dual-contact systems are designed so that specified taper and flange surfaces engage in a compatible spindle system. Confirm the machine standard and holder compatibility rather than selecting by taper size alone. Always check the machine manual or spindle documentation. If the interface designation is uncertain, record the machine make, model, spindle type and existing holder markings before requesting a replacement. Common types of CNC tool holders Different holder styles solve different clamping and machining requirements. No single style is best for every operation. Holder type Common use Selection priorities ER collet chuck General milling, drilling, reaming and mixed tool diameters Correct collet series, shank size, nut, reach and documented runout End mill holder End mills with a compatible flat or side-lock feature Bore size, screw position, tool shank style, projection and clearance Hydraulic chuck Operations requiring a documented precision clamping setup Compatible shank/tolerance, sleeve if permitted, pressure mechanism and maintenance instructions Shrink-fit holder Slim-profile or precision milling setups using thermal clamping Tool-shank compatibility, heating equipment, holder condition and approved cycles Face mill or shell mill arbor Face mills and shell-type cutters Pilot diameter, drive keys, mounting thread, cutter dimensions and gauge length Tapping chuck Tapping operations Tap size, machine cycle, compensation requirement, coolant and adapter system Power-milling holder Higher-load milling applications where the selected system is suitable Clamping system, torque demand, projection, clearance and machine limits Straight-shank holder or extension Extending or adapting an assembly Shank diameter, gripping method, added length, rigidity and collision clearance Product terminology differs among suppliers. Use the drawing and specification data—not the name alone—to confirm compatibility. ER collet chucks: flexible for mixed tooling ER collet chucks are popular because one holder and collet series can accommodate a range of tool-shank diameters by changing the collet. They are used in many drilling, milling, reaming and light-to-moderate machining setups. When selecting an ER system, verify: holder interface and taper size; ER series; collet clamping range; cutting-tool shank diameter; nut and collet compatibility; gauge length and outside dimensions; coolant configuration; supplier-documented runout and balance data where the application requires it. A collet should not be treated as a universal solution for every cutting load. The operation, projection and required rigidity still need to be considered. End mill holders: positive side-lock clamping An end mill holder—often called a side-lock or Weldon-style holder—uses a set screw against a compatible flat on the tool shank. The positive mechanical connection can be useful for milling applications where pullout resistance is a priority. The trade-off is that the assembly may be less symmetrical than other clamping designs. Suitability at a given spindle speed should be based on the holder's documented balance and operating limits, not a general assumption. Check the bore diameter, screw location, shank flat, tool projection and available clearance. Never clamp a tool in a way that conflicts with the tool or holder manufacturer's instructions. Hydraulic chucks: controlled clamping for appropriate applications A hydraulic chuck uses an internal hydraulic mechanism to apply clamping force around the tool shank. Depending on the specific product and its documented specifications, hydraulic holders may be selected for operations where repeatable clamping and controlled runout are important. Verify the approved tool-shank tolerance, whether a reduction sleeve is allowed, minimum insertion depth, coolant suitability and actuation procedure. Hydraulic holders should be inspected and maintained according to the product instructions; damaged or leaking units should not be used. Shrink-fit holders: slim profile with thermal clamping Shrink-fit holders use controlled heating to expand the holder bore so the cutting tool can be inserted. As the holder cools, it contracts around the shank. The system can provide a slim nose and access in restricted areas, but it requires compatible cutting-tool shanks, the correct heating equipment and disciplined handling. Verify the holder's approved heating method, tool diameter, insertion depth, cooling procedure and service condition. Do not improvise a heating cycle. Face mill and shell mill holders Face mills and shell-type cutters mount on an arbor rather than being gripped like a cylindrical end-mill shank. Selection depends on the cutter's pilot bore, drive-key arrangement, mounting screw or thread, cutter diameter and the machine interface. Because the assembly can be larger in diameter, collision clearance and tool-change envelope deserve special attention. Confirm the complete holder drawing with the selected cutter. Tapping holders Tapping applications may use rigid tapping, tension-compression compensation or another machine-specific setup. The correct holder depends on the machine control, tapping cycle, tap style, adapter, coolant and required compensation. Before selecting a tapping holder, confirm whether the machine supports rigid tapping and whether the application needs axial compensation. Also record the thread size, tap shank dimensions, material and coolant approach. How to select the right CNC tool holder Use the following sequence to reduce compatibility errors. 1. Confirm the exact machine interface Record the machine make, model, spindle interface, taper size and any dual-contact requirement. For CAT and similar systems, verify the approved retention-knob specification separately. 2. Identify the cutting tool completely Record the tool type, shank diameter, shank style, overall length and any flat, thread or drive feature. "Half-inch end mill" is not always enough information to define the connection. 3. Define the operation and workpiece material Heavy roughing, finish milling, drilling, reaming, tapping and face milling create different demands. Provide the workpiece material, cutter diameter, number of flutes or inserts, cutting direction and any known load or pullout concern. 4. Choose the shortest practical projection Additional reach can solve a clearance problem, but it also changes assembly stiffness and collision risk. Select enough length to reach the feature while keeping the setup as compact as the application permits. 5. Set the runout requirement from the process Runout can influence chip load distribution, surface finish and cutting-edge wear. The acceptable value depends on the cutter, tool diameter, operation and process target. Compare documented runout specifications at the stated measurement condition; do not compare numbers measured differently. 6. Verify balance and spindle-speed limits For higher-speed applications, request the holder's documented balance class, maximum RPM and applicable conditions. A balance marking is not permission to exceed the limits of the machine, spindle, cutting tool, retention system or complete assembly. The lowest applicable limit governs. 7. Confirm coolant delivery Determine whether the setup needs through-spindle coolant, coolant through the tool, peripheral delivery or another configuration. Confirm seals, collets, nuts, screws and coolant paths as part of the complete system. 8. Check clearance and tool-change compatibility Review holder diameter, nose profile, gauge length and assembly envelope in the CAM simulation where possible. Confirm that the flange and orientation features work with the machine's automatic tool changer. 9. Verify every accessory Retention knobs, collets, nuts, reduction sleeves, stop screws and coolant components must belong to the correct system. Similar appearance does not establish compatibility. Runout, balance and rigidity: related but different These terms are often grouped together, but they describe different aspects of a tool assembly. Runout describes deviation as the tool or holder rotates, measured under defined conditions. Balance describes mass distribution around the axis of rotation and is especially relevant as rotational speed increases. Rigidity describes resistance to deflection under load and depends on the complete assembly, including projection and connection points. A holder can have a strong specification in one area without automatically meeting every application requirement. Review the complete setup and use comparable, documented data. Common tool-holder selection mistakes Selecting by taper size only CAT40, BT40 and other "40" interfaces are not automatically interchangeable. The flange, retention system and machine standard matter. Using unnecessary reach Choosing a longer holder "just in case" can create clearance, vibration or deflection concerns. Start with the shortest practical assembly. Ignoring the cutting-tool shank Diameter alone does not describe a shank. Flats, threads, tolerance, insertion depth and surface condition can affect the correct clamping method. Comparing unqualified accuracy claims Runout values are meaningful only with the measurement location, test bar or tool, assembly condition and supplier documentation. Assuming a holder's RPM applies to the assembly The safe operating limit depends on every component and the machine. Follow the lowest documented limit and the applicable operating instructions. Reusing damaged or contaminated components Chips, burrs, corrosion, fretting or incorrect assembly can compromise contact. Clean and inspect spindle tapers, holders, collets, nuts, knobs and tool shanks under the shop's maintenance procedure. A complete RFQ checklist for CNC tool holders Providing accurate application data helps a supplier narrow the options efficiently. Include: machine make and model; exact spindle interface and taper size; dual-contact requirement, if applicable; current holder marking or EDP/catalogue number; cutting-tool type and shank dimensions; operation and workpiece material; required gauge length or reach; clearance restrictions; planned spindle-speed range; coolant requirements; required runout or balance specification, with measurement conditions; quantity and delivery ZIP code. If replacing an existing setup, clear photographs and the current holder drawing can also help—but dimensions and machine documentation should remain the primary reference. Source CNC tool holders with application information—not guesswork PAC Precision Tools USA supplies CNC tooling and accessories for U.S. machine shops, manufacturers and distributors. The available range includes tool holders across multiple interfaces and clamping styles, along with collets, retention knobs, bushings, centers and related accessories. PAC Tools is a tooling supplier and distributor. Product recommendations should be based on the exact machine and application; specifications, availability and suitability must be confirmed for the selected EDP or part number. Need help identifying a CNC tool holder? Send PAC Tools your machine model, spindle interface, cutting-tool shank, operation, material, required reach, RPM range, coolant requirement, quantity and ZIP code. Phone: +1 262-282-2456 Email: sales@pactoolsusa.com Sales support: https://www.pactoolsusa.com/pages/supports Frequently asked questions What is a CNC tool holder? A CNC tool holder connects a machine spindle to a rotating cutting tool. It locates and clamps the tool while transferring torque and supporting the required machining setup. Are CAT40 and BT40 tool holders interchangeable? Do not assume they are interchangeable. Although comparable CAT and BT sizes can use a similar steep-taper geometry, flange, retention and tool-change details differ. Use the exact interface specified by the machine builder. Which tool holder is best for an end mill? The answer depends on the machine interface, tool shank, operation, cutting load, reach, clearance, runout target, speed and coolant. ER collet chucks, side-lock end mill holders, hydraulic chucks and shrink-fit holders each suit different requirements. What information is needed to order a CNC tool holder? Provide the machine model, spindle interface, cutting-tool shank, operation, material, gauge length, RPM range, coolant requirement and quantity. An existing EDP, part number or holder drawing is also useful. Why does tool-holder runout matter? Runout can change how cutting edges share the chip load and may affect wear, surface finish and process consistency. Evaluate documented runout under comparable measurement conditions for the specific operation. Can the maximum RPM printed for one component be used for the full assembly? No single component rating automatically defines the full assembly. The machine, spindle, holder, retention system, collet or sleeve, cutting tool and setup conditions all have limits. Follow the lowest applicable documented limit. How should CNC tool holders be maintained? Follow the holder and machine instructions. Keep contact surfaces clean, inspect for wear or damage, assemble with the specified components and torque procedures, and remove questionable tooling from service for inspection.
